High-End Aluminum Veneer for Architectural Excellence
Product Overview

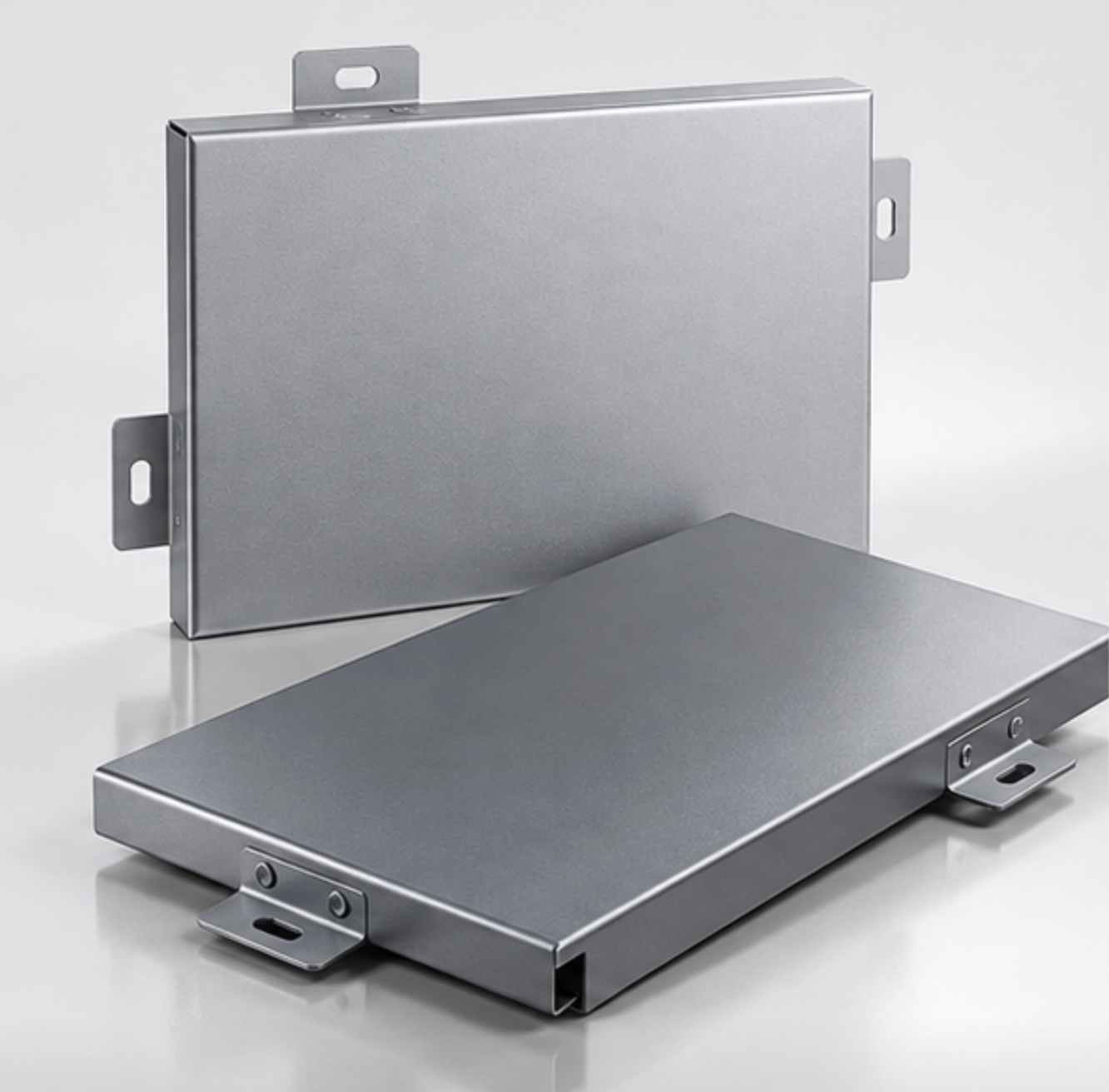

Aluminium Solid Panel from Alu NJJX™ is a durable and highly customizable architectural cladding solution designed for exterior façades, curtain walls, ceilings and interior applications. Unlike aluminium composite panels, solid aluminium panels are fabricated from a single sheet of aluminium alloy and can be cut, folded, curved, perforated and formed into a wide variety of architectural shapes.
Alu NJJX™ solid aluminium panels are available in A1100, A3003 and other aluminium alloy grades according to project requirements. Standard panel thicknesses range from 1.5 mm to 4.0 mm, with customized thicknesses available for special applications. Their combination of strength, relatively low weight and excellent formability makes them particularly suitable for commercial buildings, transportation hubs, shopping centres, office developments and complex architectural façades.
For exterior applications, we offer high-performance PVDF fluorocarbon coating systems with excellent resistance to UV exposure, weathering, corrosion and environmental pollutants. PE coating, powder coating and decorative finishes are also available depending on the application and required appearance. A wide selection of solid, metallic, wood grain and customized colours can be produced to meet different architectural design requirements.
One of the key advantages of Alu NJJX™ Aluminium Solid Panel is its extensive fabrication flexibility. Panels can be manufactured according to customer drawings, CAD designs and project specifications, including:
CNC perforation and customized patterns
Folding and edge forming
Curved and radius panels
Irregular and special-shaped panels
Engraving and decorative designs

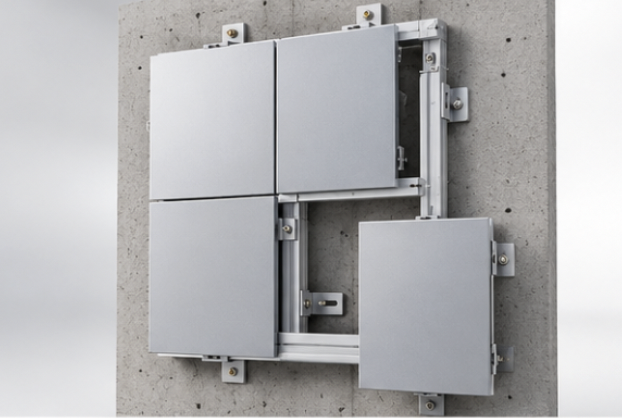

Customized mounting and fixing systems
Our production capability supports large-format panels with dimensions of up to 1,800 mm in width and 6,000 mm in length, subject to panel design, thickness, fabrication requirements and transportation conditions.
Specifications
Product: Aluminium Solid Panel
Material: A1100 / A3003 / Other Aluminium Alloys
Standard Thickness: 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 mm
Custom Thickness: Up to 6.0 mm
Maximum Width: Up to 1,800 mm
Maximum Length: Up to 6,000 mm
Panel Size: Custom fabricated according to project drawings
Coating Options: PVDF / PE / Powder Coating
Surface Finishes: Solid Colour / Metallic / Wood Grain / Custom Finishes
Fabrication: Cutting / Folding / Curving / Perforation / CNC Processing / Special Shapes
Applications: Exterior Façades / Curtain Walls / Ceilings / Canopies / Columns / Interior Decoration
Custom Design: Available according to customer drawings and project specifications
